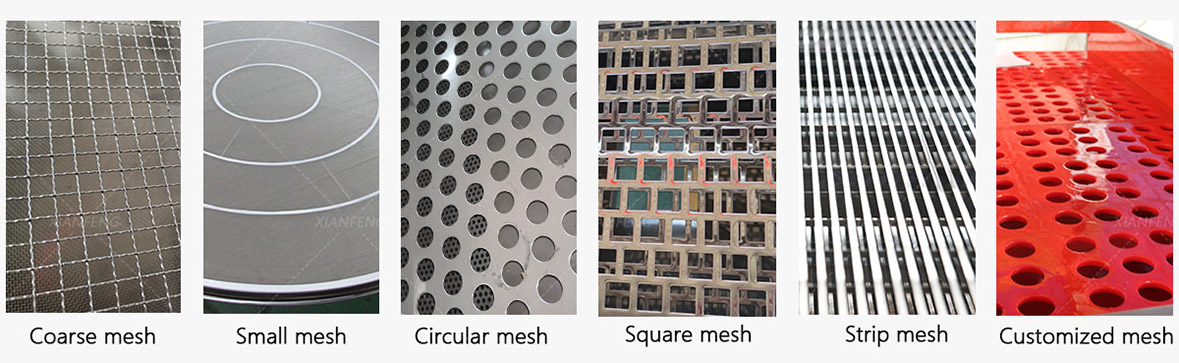

For screening applications of different materials, the vibrating screen is equipped with a variety of optional screens to cope with different scenarios.
Shape characteristics: The mesh holes are square, with equal side lengths, and the mesh wires are perpendicular to each other and evenly spaced.
Main features:
The screening efficiency is high because the square holes have a relatively large passing area and good material permeability.
Suitable for screening materials with less strict requirements for particle shape, such as coal, ore, sand, and other medium coarse particle materials.
The material and diameter of the mesh can be selected according to the hardness and wear resistance requirements of the material, such as using high carbon steel, stainless steel and other materials to improve its service life.
Shape characteristics: The mesh holes are circular, with consistent size and uniform distribution.
Main features:
High screening accuracy, good screening effect for circular particle materials, and effective control of
particle passing rate.
Suitable for fine screening, such as screening of fine particulate materials such as chemical raw materials, food additives, pharmaceutical intermediates, etc.
Due to the structural characteristics of circular holes, the material is less likely to block the mesh during the screening process, reducing the number of times the screen mesh needs to be cleaned.
Shape characteristics: The mesh is rectangular in shape, and the length of the hole is greater than its width.
Main features:
The screening effect is good for long and sheet-like materials, which can make it easier for these materials to pass through the sieve.
The screening speed is relatively fast, suitable for situations with large processing volumes, such as screening construction waste, ores, etc.
The length and width ratio of the mesh can be adjusted according to the characteristics of the material to meet different screening needs.
Shape characteristics: The mesh shape is irregular and designed according to special screening requirements.
Main features:
Strong targeting, able to meet the screening requirements of some special materials, such as graded screening of particles with specific shapes.
Due to its unique shape and relatively complex manufacturing process, the cost may be higher.
Suitable for screening scenarios in special industries such as pharmaceuticals, fine chemicals, food processing, etc. that have strict requirements for material shape.
In practical applications, different shapes of vibrating screens need to be selected based on the properties of the material (such as particle size, shape, hardness, humidity, etc.), screening purposes (such as grading, impurity removal, filtration, etc.), and production requirements (such as processing capacity, screening accuracy, etc.) to achieve the best screening effect.

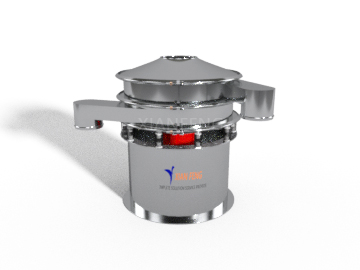

Circular Vibrating Screen | Flour Screening
